PalletPal® Roll-In

Home » Work Positioning » PalletPal® Roll-In
Roll-E up Product

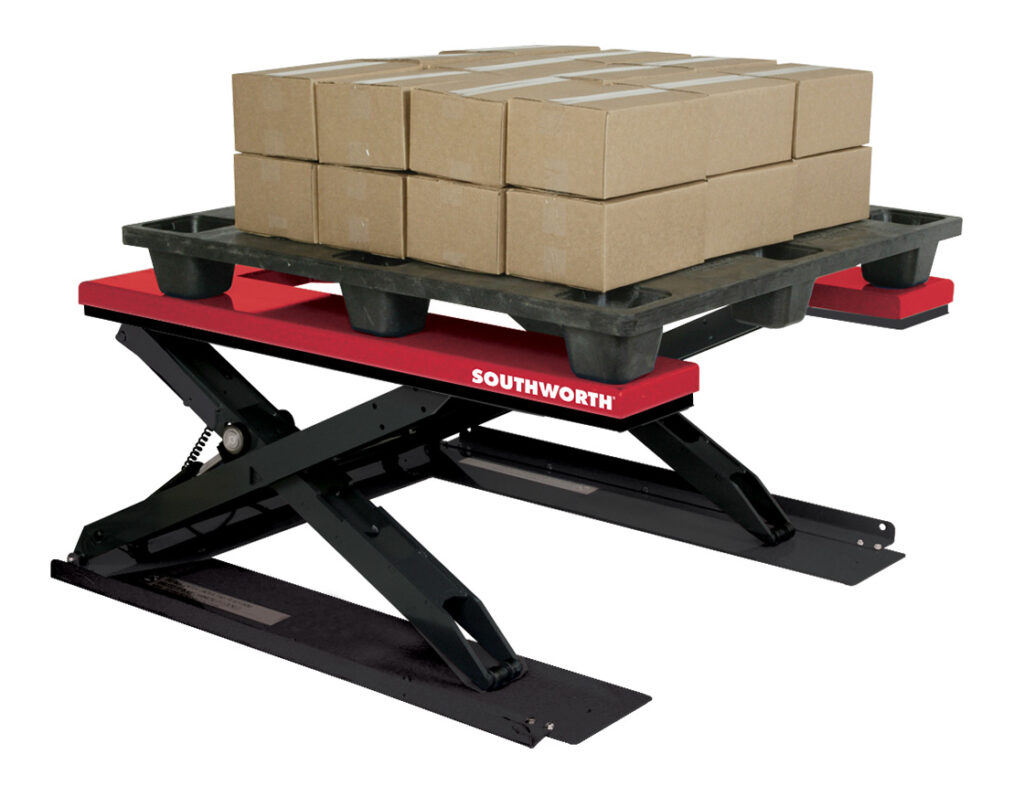

Roll-E Product with pallet
Roll-E down with jack
Roll-U Product with forktruck
Roll-U Product with pallet

The PalletPal Roll-In is designed for efficient loading and unloading using a hand pallet truck. For use with any type of open-bottom pallet or skid, operators can raise the pallet truck and roll the load into position. The load is uniformly positioned, and the pallet truck is lowered and rolled out of the way. For added safety and convenience, the Roll-In includes a full perimeter toe-guard and a footswitch for hands-free positioning.

Find a Product Specialist

Key Features

  • Load Capacity: Handles up to 2200 lb.
  • Collapsed Height: Lowers to 3.25″
  • Lifting Height: Raises up to 34.75″
  • Accessibility: Hand pallet truck accessible
  • Safety Features: Full perimeter toe-guard
  • Operation: Footswitch allows for hands-free load positioning
  • Compatibility: For use with open bottom pallets or skids – no closed bottom pallets
PalletPal Roll-In Level Loader

Specifications

Show all Model Specifications

Connect with a Specialist

Not sure which material handling solution will work best in your process or application? A Southworth product specialist can help. Select your region below to connect with a team member.


One moment while we find a specialist for your area...

Product Resources

resource icon

Owner's Manual

LiftMat and Roll-E

Download PDF
resource icon

Product Video

PalletPal® Roll-In Level Loader

Watch Video
resource icon

Product Brochure

Full Product Line

Making work faster, safer, and easier with Lifting, Positioning, and Transporting Solutions

Download PDF
resource icon

Product Brochure

Pallet Handling

Level Loaders, Turntables, Rotators/Inverters, Low-Profile Levelers, and Transporters

Download PDF
resource icon

Product Brochure

Low-Profile Lift Tables

Hand Pallet Truck Accessible Lifts and Levelers

Download PDF
View All Resources
Close

Troubleshooting

Wear on underside of turntable
PalletPal 360
Possible CauseCheck This
This is a normal condition caused by work-hardening of metal.No repair is necessary.
Excessive “rumble” when the rotating ring is turning
PalletPal 360
Possible CauseCheck This
Excessive wear or lack of lubrication to bearings under the turntableRemove the turntable and replace the bearings.
Top of lift bounces
PalletPal 360
Possible CauseCheck This
Damaged shock absorberCheck for leaks or dents. Replace if necessary.
Top of lift rotates away from me/towards me on its own
PalletPal 360
Possible CauseCheck This
Frame of unit not levelMove the unit to a level surface or install the optional adjusting feet to level base frame.
Lift lowers too hard and too late
PalletPal 360
Possible CauseCheck This
The springs may be too strongCheck the spring ratings.
Lift lowers too easily and too early
PalletPal 360
Possible CauseCheck This
Springs may be too weakCheck the spring ratings.
Lift lowers too slowly
PalletPal Roll-On (All ROLL-C Models)
Possible CauseCheck This
Down valve may not be fully open or stuck closedRemove down valve and clean.
Flow control may need adjustmentAdjust flow control as needed.
Lift raises too slowly
PalletPal Roll-On (All ROLL-C Models)
Possible CauseCheck This
Low voltageCheck voltage at motor to ensure proper voltage is being supplied.
Foreign material clogging suction filter, breather cap or pressure lineRemove necessary components and clean.
Insufficient oil causing pump to overheatCheck oil level and oil viscosity.
Lift will not lower
PalletPal Roll-On (All ROLL-C Models)
Possible CauseCheck This
Down valve may be de-energizedCheck the solenoid on the valve with a voltmeter.
Flow control needs adjustmentAdjust flow control as needed.
Lift fails to hold or drifts down
PalletPal Roll-On (All ROLL-C Models)
Possible CauseCheck This
Down valve may be leakingRemove down valve and inspect for debris which may be preventing it from closing.
Down valve may be energizedEnsure that the down valve coil is not being energized when the up button is pushed. Verify no stray voltage to down valve coil preventing it from being fully closed. Check the wiring.
Cylinder may be leakingCheck for oil in cylinder in the vent line.
