Lift + Tilt Tables

Home » Work Positioning » Lift + Tilt Tables

Allowing independent control of lift and tilt to precisely position containers or other items at the  right height and tilt angle, these Lift + Tilt Tables compensate for a shifting center of gravity as loads are tilted. The open-frame top allows the tilting hydraulics to retract within the frame resulting in a lower profile when in the full down position. Lift + Tilt Tables with Universal Tilter Base (UTB) also feature a shorter but wider stance for improved stability in a small footprint.

Choose from Hydraulic Lift + Tilt Tables (UTB Model Designations) or Pneumatic Lift + Tilt Tables (LTA Model Designations) units.

Key Features

  • Load Capacity: Handles from 1,000 – 4,000 lbs
  • Control: Independent control of both lift and tilt functions
  • Precision: Designed for accurate and controlled positioning
  • Power Source: Available in hydraulic and pneumatic configurations.

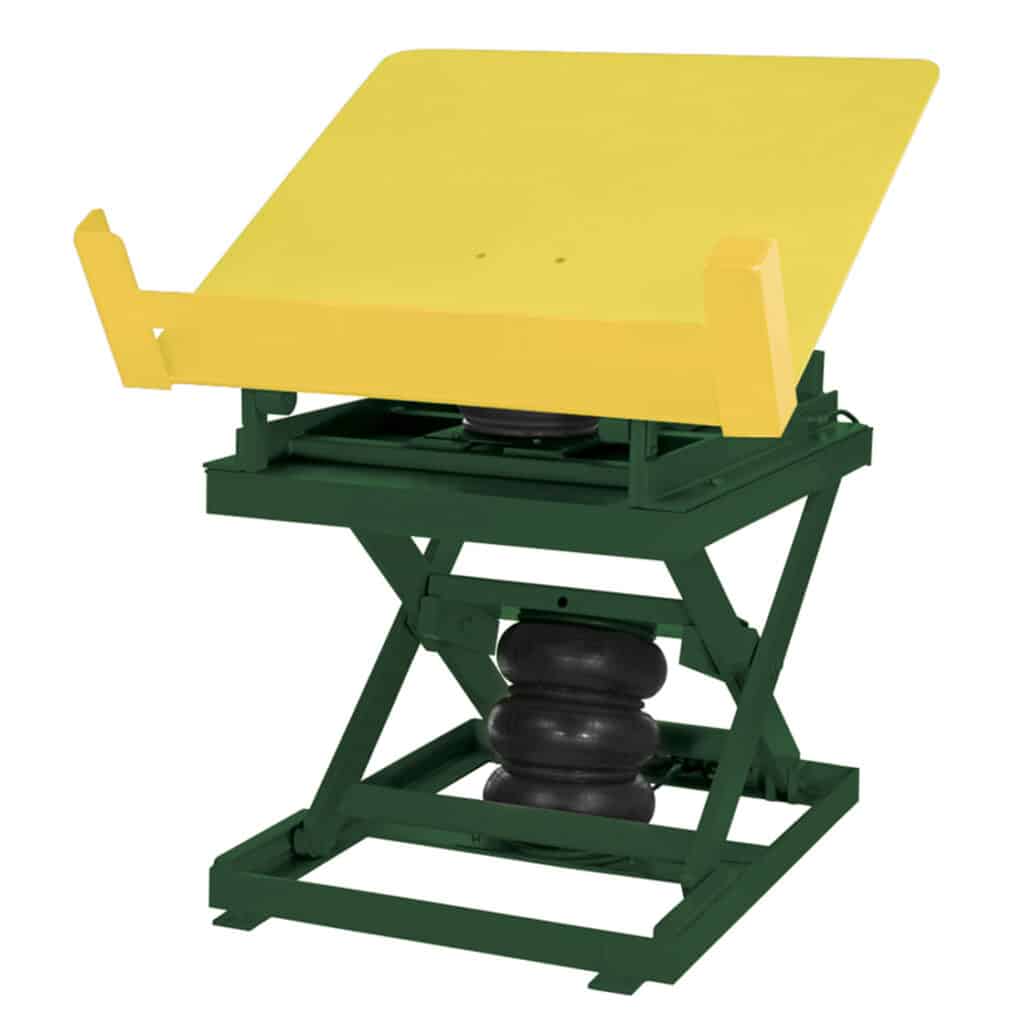

Lift and Tilt Pneumatic Product detail

Specifications

Hydraulic Lift and Tilt Tables

Show all Model Specifications

Pneumatic Lift and Tilt Tables

Show all Model Specifications

Customization Options

Bellows Accordion Skirting
Foot Valve

Product Resources

resource icon

Service Manual

Changing Leg Rollers

Download PDF
resource icon

Service Manual

Converting Rollers to Cam Followers

Download PDF
resource icon

Service Manual

Center Scissor Pin Replacement

Download PDF
resource icon

Service Manual

Down Limit Switch Installation

Download PDF
resource icon

Service Manual

Changing Lower Roller Stops

Download PDF
resource icon

Service Manual

Relief Settings for Hydraulic Pumps

Download PDF
resource icon

Service Manual

Cleaning or Replacing a Down Valve

Download PDF
resource icon

Service Manual

Leaking Cylinders-Single-Activating Cylinders

Download PDF
resource icon

Service Manual

Pump Replacement

Download PDF
resource icon

Service Manual

Resetting Lifts Equipped with Velocity Fuses

Download PDF
resource icon

Owner's Manual

Hydraulic Lift and Tilt

Download PDF
resource icon

Product Brochure

Full Product Line

Making work faster, safer, and easier with Lifting, Positioning, and Transporting Solutions

Download PDF
resource icon

Product Brochure

Lift Tables

Details and specifications on our complete line of lift tables

Download PDF
Close

Troubleshooting

Lift will not lower
Possible CauseCheck This
Down valve may be energizedCheck the solenoid in the valve with a volt meter.
Flow control needs adjustmentAdjust flow control as needed.
Lift will not raise
Possible CauseCheck This
Weight of load too heavyEnsure that the actual weight of the load is at or below maximum allowed.
Motor not runningCheck the main disconnect switch, fuses, and wiring to the motor. A 20 amp designated breaker must be supplied for 110V.
Hydraulic oil level lowWhen lift is raised as far as possible, oil level should be 3/4" from bottom of tank.  When lift is down, 3/4" from top.
Lift has reached its upper limitUpper limit switch may need to be adjusted.
Motor may be "single phasing"If motor hums but does not turn, check motor wiring and line fuses.
Motor voltage too lowSupply voltage should be +/- 10% of the rating at the motor terminals.
Tank vent pluggedIf supplied, remove solid plug from tank and insert vent plug.
Suction filter cloggedClean suction filter as described in periodic maintenance.
Vacuum leak in suction line   Check all fittings in suction line.
Down valve may be energizedEnsure that the down valve coil is not being energized when the up button is pushed. Verify no stray voltage to down valve coil preventing it from being fully closed. Check the wiring.
Missing couplingEnsure that debris is not holding the down valve plunger open.
Lift fails to hold
Possible CauseCheck This
Down valve may be leakingRemove down valve and inspect for debris which may be preventing it from closing.
Down valve may be energizedEnsure that the down valve coil is not being energized when the up button is pushed. Verify no stray voltage to down valve coil preventing it from being fully closed. Check the wiring.
Cylinder may be leakingCheck for oil in cylinder in the vent line.
